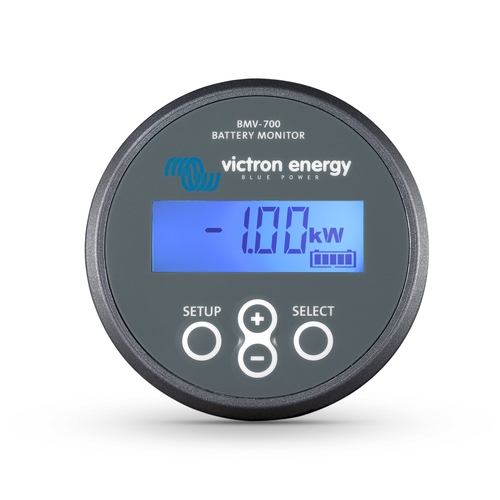

VICTRON Battery monitor BMV 700 – Grey

$193.70

The Victron BMV700 Battery Monitor measures the DC loads on a battery, using a 500A shunt, and accurately displays battery State of Charge (SOC), on its LCD screen.

SKU: B0427 Category:

Description

VICTRON Battery monitor BMV 700 – Grey

The BMV700 includes a low battery alarm, a battery temperature sensor option, as well as full connectivity (via option VE.direct cable) to Victron’s other monitoring/control products such as the Venus GX and Color GX.

Overview of Specification

  • Voltage range 6.5-95V DC
  • Battery Cap: 20-9999Ah
  • Shunt Current: 500A
  • VE.Direct port
  • LCD Screen, Light

Features

  • IP Rating: IP34
  • Current Draw: <4mA
  • Warranty: 5 Years
  • DIA 52mm x 31mm Deep
  • 10m UTP Cable Shunt to Display
  • Optional Temp Sensor

Brochure/Manufacturer’s Website

Additional information

Weight 0.3 kg
Dimensions 6.5 × 6.5 × 3 cm
