Victron BlueSolar MPPT 100/30A Solar Controller


The Victron BlueSolar MPPT 100/30A Solar Charge Controller. BlueSolar 100V Max Solar (VOC) input, 30 Amp MPPT solar charge controller for 12V and 24V batteries. Victron Energy.

SKU: B0224 Category:

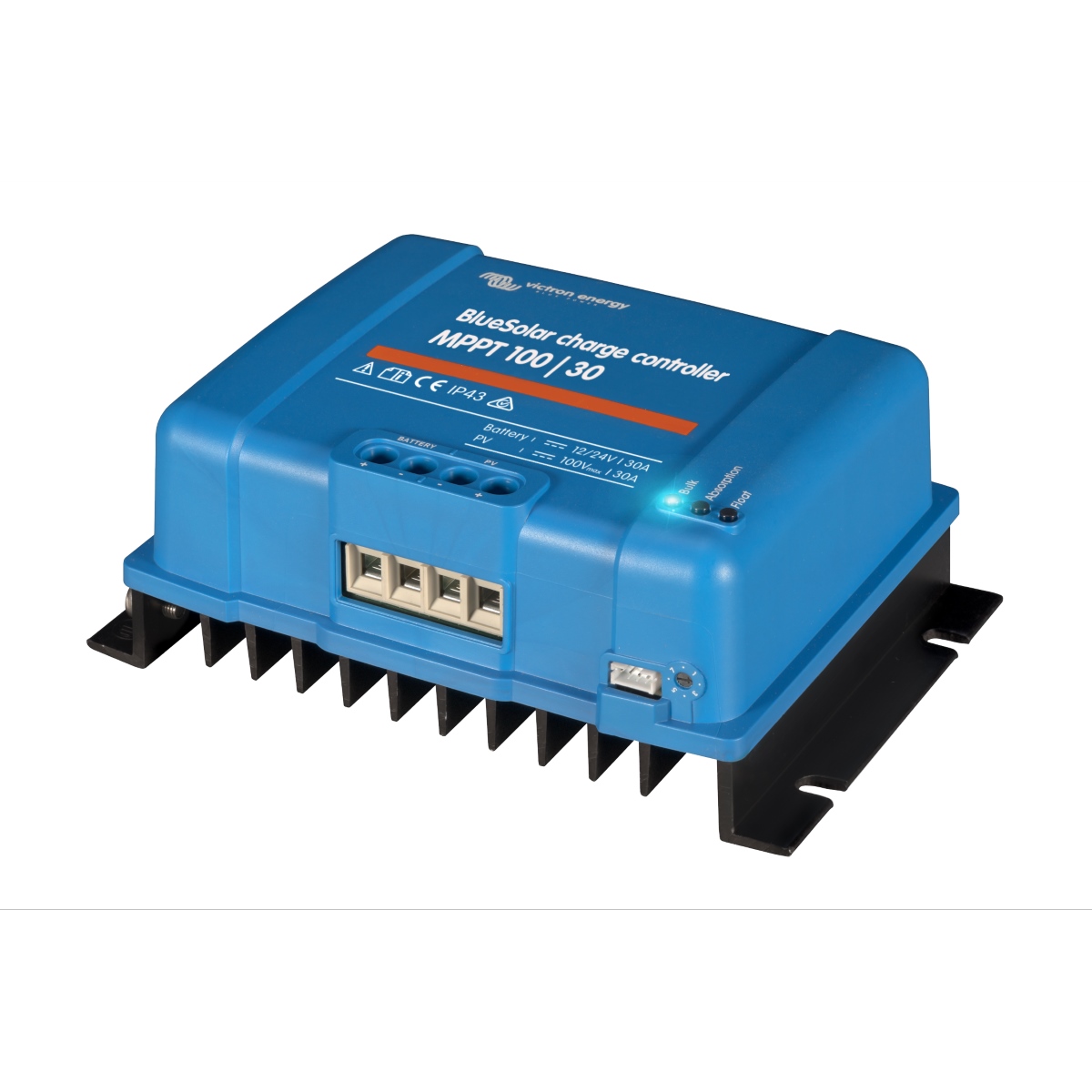

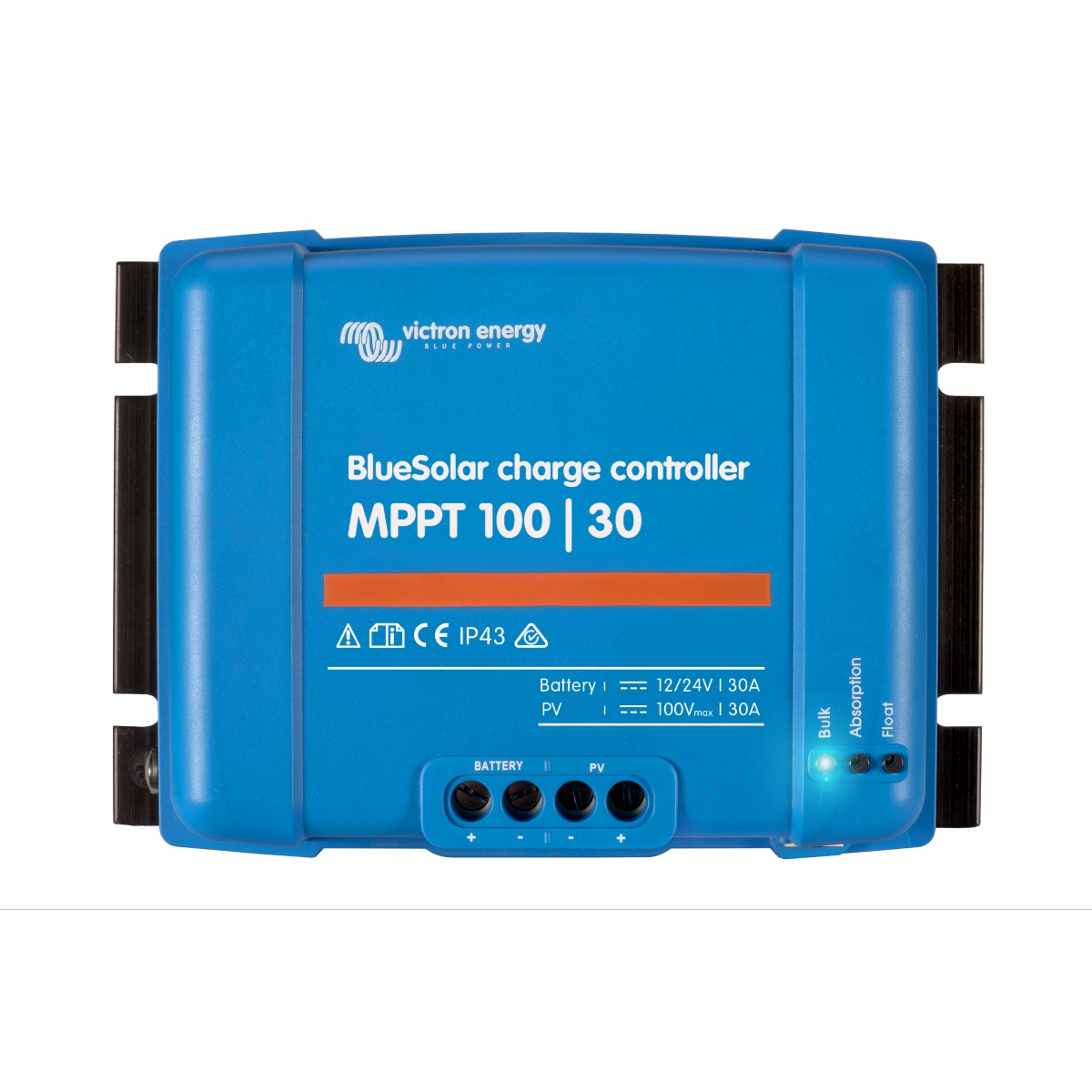

Victron BlueSolar MPPT 100/30A Solar Charge Controller

The Victron BlueSolar MPPT 100v/30A Solar Charge Controller is a high quality, robust Maximum Power Point Tracking charge controller. The Victron 100/30 MPPT is ideal for Australian conditions. Especially in the case of a clouded sky, when light intensity is changing continuously, an ultra fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. Suits 12V or 24V batteries.

Overview of Specification

  • Durable Electronics, protects from the environment
  • Voltage: 100V VOC, 12V/24V Batt
  • Power: 30A
  • Maximum Power Point Tracking (MPPT)
  • Intelligent Battery Charge voltage settings.
  • Protected against reverse polarity connection of the solar panels and/or battery.
  • With low voltage load disconnect output.
  • Up to 30 Amps Solar Panel current Input (~440W/12v * 880/24v)


  • IP Rating: IP43
  • Din Rail mounting
  • Warranty: 5 Years
  • Data connection port

Brochure/Manufacturer’s Website

Additional information

Weight 1.3 kg
Dimensions 18.6 × 13 × 7 cm

MPN (Part #)
