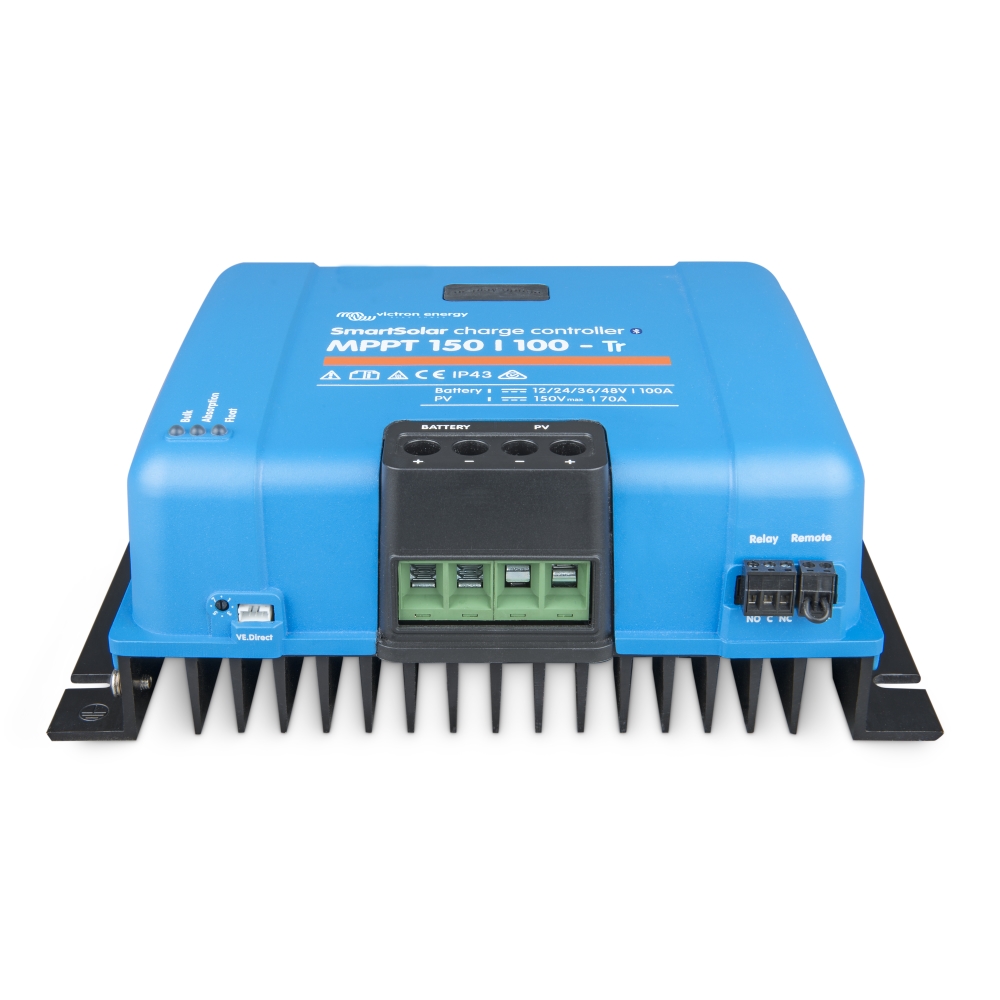

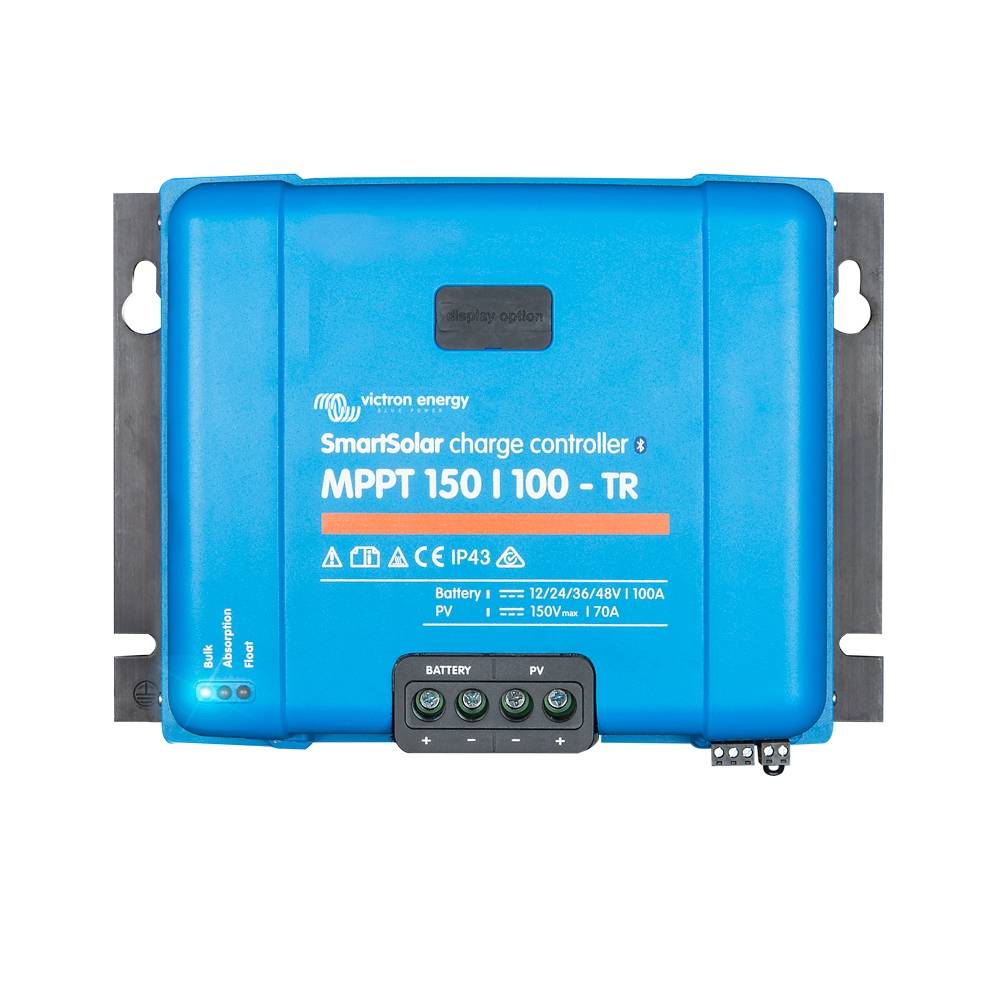

Victron SmartSolar MPPT 150v/100A TR Solar Controller

$1,165.95

BlueSolar 150V Max Solar (VOC) input, 100 Amp MPPT solar charge controller for 12V, 24V & 48V battery systems. Victron Energy.

SKU: B0216 Category:

Description

Victron 150/100 MPPT SmartSolar Charge Controller

Victron 150/100 SmartSolar MPPT is a Maximum Power Point Tracking (MPPT) Solar Charge controller, ideal for Australian conditions. Especially in the case of a clouded sky, when light intensity is changing continuously, an ultra fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Solar Panel Wattages – 1450 W @ 12V dc – 2900 W @ 24V dc – 5800 W @ 48V dc
Maximum Voltage – 150 Volts DC.

** Note: Check AS5033 – Panels may need to be earthed by an electrician. Screw terminal version. MC4 connector version also available.

Overview of Specifications

MPPT: Maximum Power Point Tracking
BlueTooth Smart Built In, for Phone App access to program
Fully programmable charge algorithm
High 98% efficiency
12V/24/48V Auto Select Battery voltage
100 Amp Solar Charge Controller (Regulator)
Up to 100 Amps Solar Panel current Input (~1450W/12v / 2900W/24v / 5800W/48V)
Low voltage load disconnect
Optional Plugable LCD Display
Over-temperature protection and power derating when temperature is high.
PV short circuit and PV reverse polarity protection.
Programmable relay
Remote On/Off
PV reverse current protection.
Internal temperature sensor
Weight: 4.5kg
Dimensions: 216x295x103
IP43, Suitable for outdoor mounting

Features:

  • Screw terminals for Solar Panel Connectors
  • Durable Electronics, protects from the environment
  • Maximum Power Point Tracking (MPPT) controller. Increases charge current by up to 30% compared to a PWM controller.
  • Intelligent Battery Charge voltage settings.
  • 12, 14 & 48Volt Battery operation.
  • Three stage battery charging (bulk, absorption, float).
  • Protected against over current.
  • Protected against short circuit.
  • Protected against reverse polarity connection of the solar panels and/or battery.
  • With low voltage load disconnect output.
  • Data connection port VE.direct

Product Data Sheet 1

Additional information

Weight 4.5 kg
Dimensions 30 x 22 x 10.5 cm
Brand

MPN (Part #)

Price
