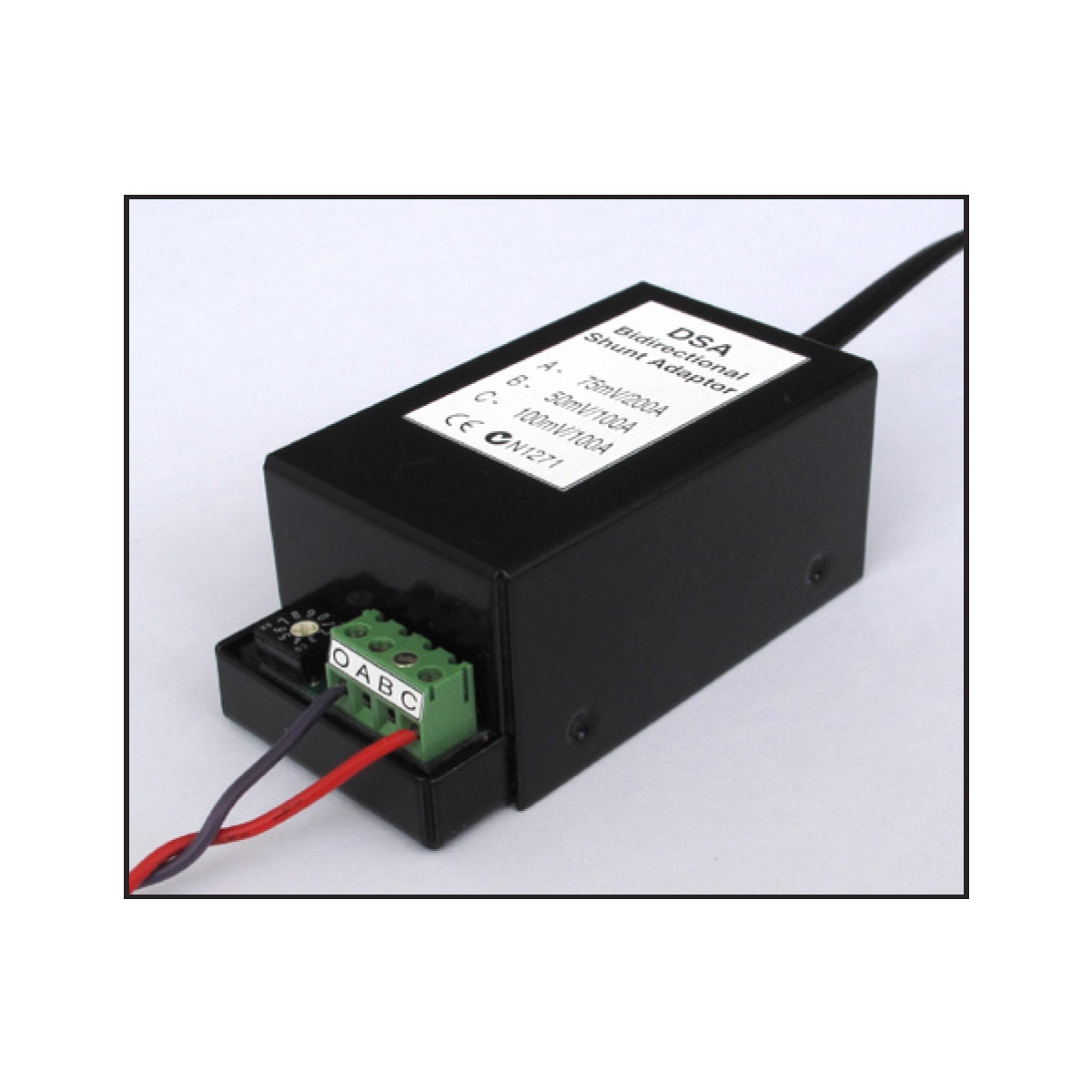

Plasmatronics DSA Dingo External Shunt Adapator & Cable

$132.68

The Plasmatronics DSA shunt adapter is designed for use withDingo solar controllers, to measure load currents which do not go though the controller.

SKU: B0054 Category:

Description

Plasmatronics DSA Dingo External Shunt Adapator & Cable

The Plasmatronics DSA shunt adapter is designed for use withDingo solar controllers, to measure load currents which do not go though the controller. This allows inverter or generator currents to be included
in the controller’s display.

Overview of Specification

  • Used with SH200 Shunt and Dingo series controllers.
  • Current draw: 4.3mA (from Dingo)
  • Dimensions (h x w x d): 75 x 25 x 30mm
  • Weight: 0.6kg

Features

  • Supply Voltage: 10-100V
  • Current Range: +/- 250A / 1A steps
  • Auto range change
  • Temp -20 to 70C
  • DCAB Cable to Dingo supplied, included
  • Shunt Sizes 1, 0.5 & 0.375mOhms
  • DC Isolation 500V

Brochure/Specification

Additional information

Weight0.25 kg
Dimensions8 x 3.5 x 3 cm
Brand

MPN (Part #)

Price
