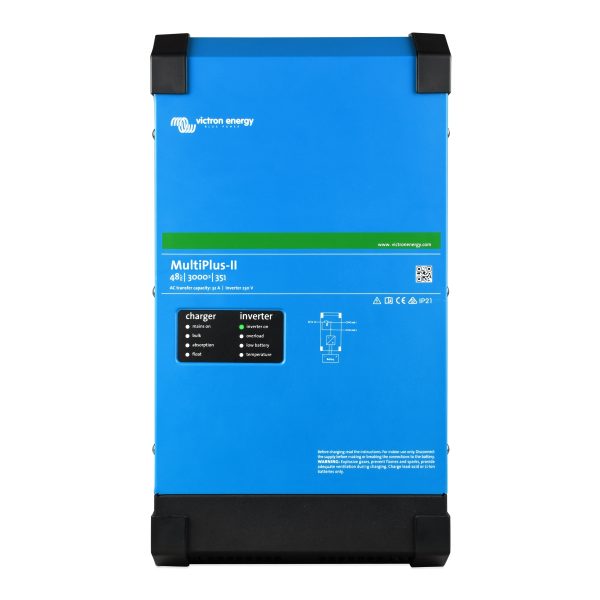

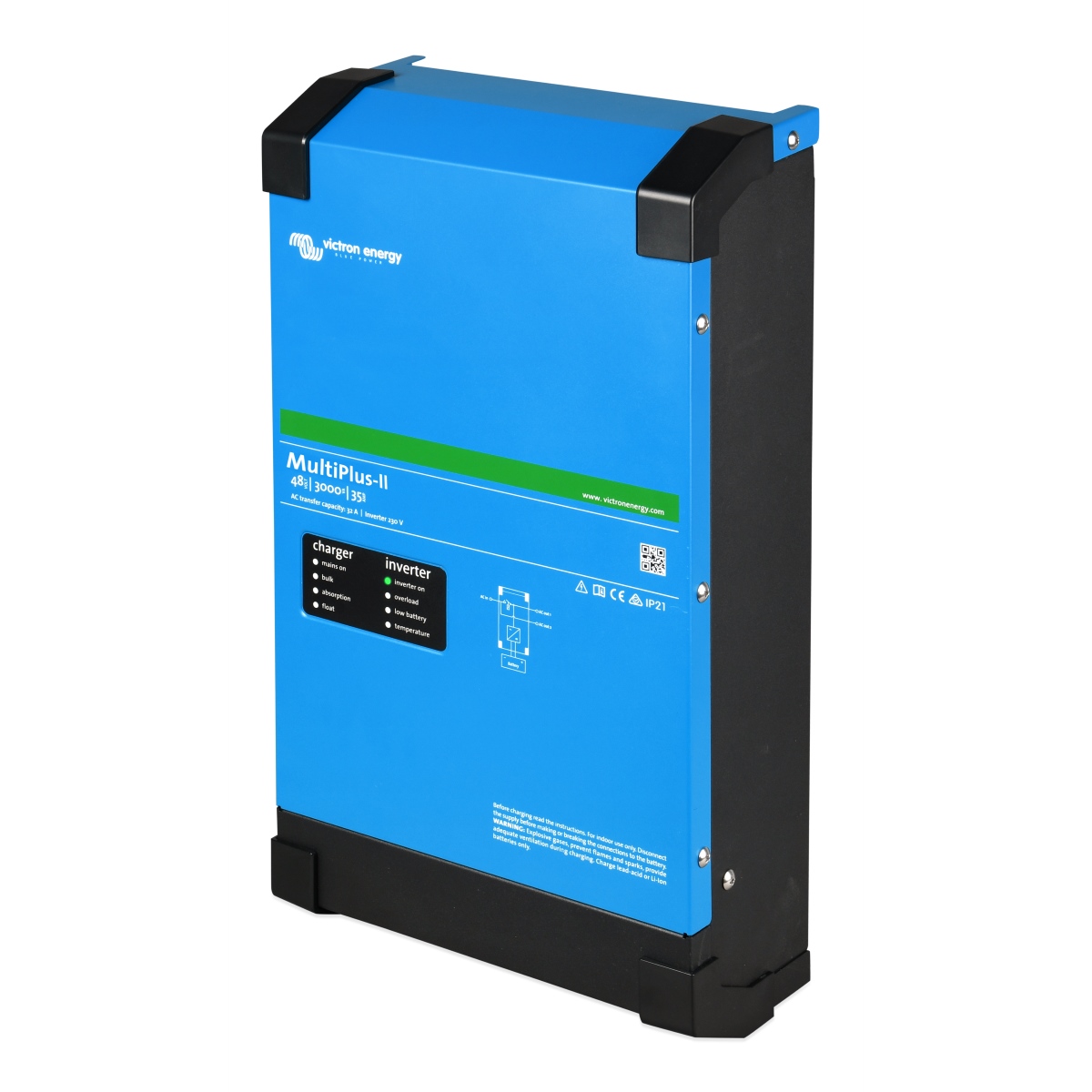

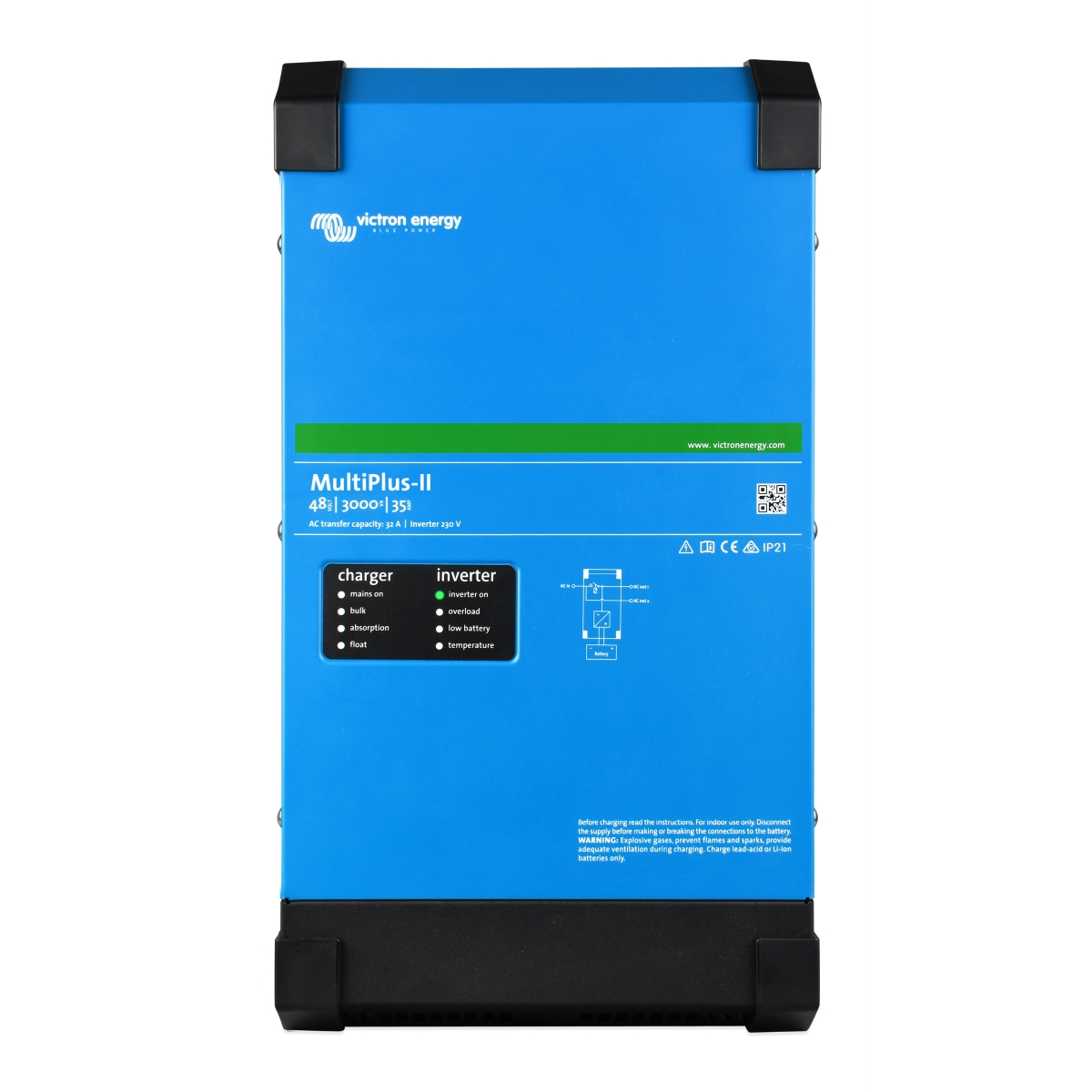

Victron MultiPlus-II 48/3000/35-32 Inverter-Charger

$1,656.55

The Victron MultiPlus-II 48/3000/35-32 Inverter-Charger is a 48V battery inverter-charger, 35A battery charging, 3KVA (2.4KW) output: grid ready.

SKU: B0240 Category: Brand:

Description

Victron MultiPlus-II 48/3000/35-32 Inverter-Charger

The Victron MultiPlus-II 48/3000/35-32 Inverter-Charger is a grid-ready, 3KVA (2.4KW) output, battery inverter-charger.  (Formerly called the MultiGrid-II, both are essentially the same: grid approved battery inverters.) Approved for the Australian power grid, designed to be coupled with another solar panel inverter, in a home AC power circuit (AC-coupled). Victron Energy has designed the MultiPlus II as a lean and efficient next generation battery inverter/charger, with many of the features of their popular Muliplus, including Power Assist (up to 100A), and the ability to supply power to a residence, even when the grid goes down. Can also be used off-grid, or paralleled for higher output.  Ideal for use with ecoCool’s K29 Paragon 4.3KWh Solar battery.  Or ecoCool’s K29 Paragon 5.8KWh Solar battery.

Overview of Specification

  • Victron MultiPlus-II 48/3000/35-32 Inverter-Charger
  • Voltage: 48V Dc
  • Power: 3KVA
  • 2400Wp Max Output (3KVA)
  • 35A Max Battery charging
  • 32A Max input current & Switch-throughput current
  • Anti-Islanding for use on Australian Power Grid

Features

  • IP Rating: IP22
  • Efficiency: 95%
  • Warranty: 5 Years
  • 18kg
  • 499x268x141mm
  • AS4777.2 approval (CEC Approved PCE)
  • VE Bus x 2, VE Can x 1
  • Optional current Transformer – Grid Sensor

Brochure/Manufacturer’s WebsiteNo DIY Electrical Work

Additional information

Weight 18 kg
Dimensions 49.9 × 26.8 × 14.1 cm
