SMA Sunny Boy 1.5kW Inverter

$1,012.95

The SMA Sunny Boy 1.5kW inverter is a next generation, residential single phase inverter, with wifi, Web monitoring & transformerless design. From SMA.

SKU: B0207 Category:

Description

SMA SUNNY BOY 1.5kW VL-40 INVERTER

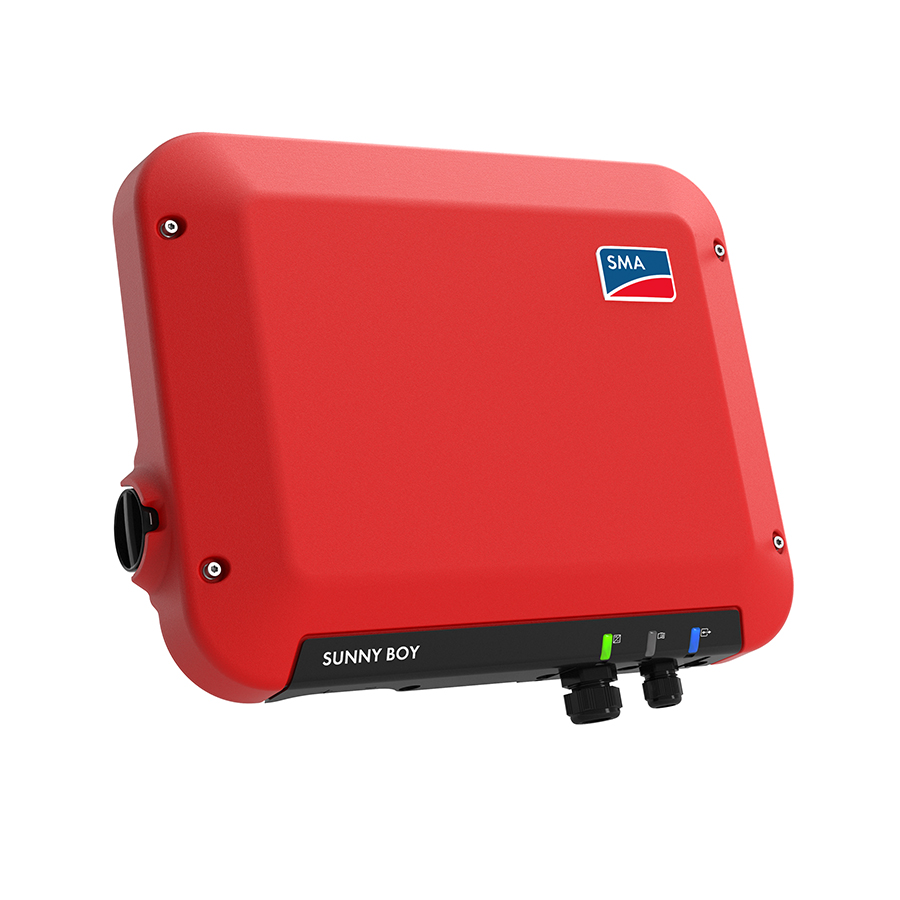

The SMA Sunny Boy 1.5-VL-40 inverter sets a new benchmark for small
photovoltaic (PV) systems. Not only is it light weight (9kg) and small
in size, it also has a wide input voltage range from 80 to 600V and is
compatible with most of the commercially available panels. Within this
flexible exterior design holds some of the most advanced inverter
technologies such as OptiTrack Global Peak and integrated webservers.
Some advantages of the SMA Sunny Boy 1.5-VL-40 inverter include:  (*See Free shipping regions below)

  • High maximum efficiency of 97.2%

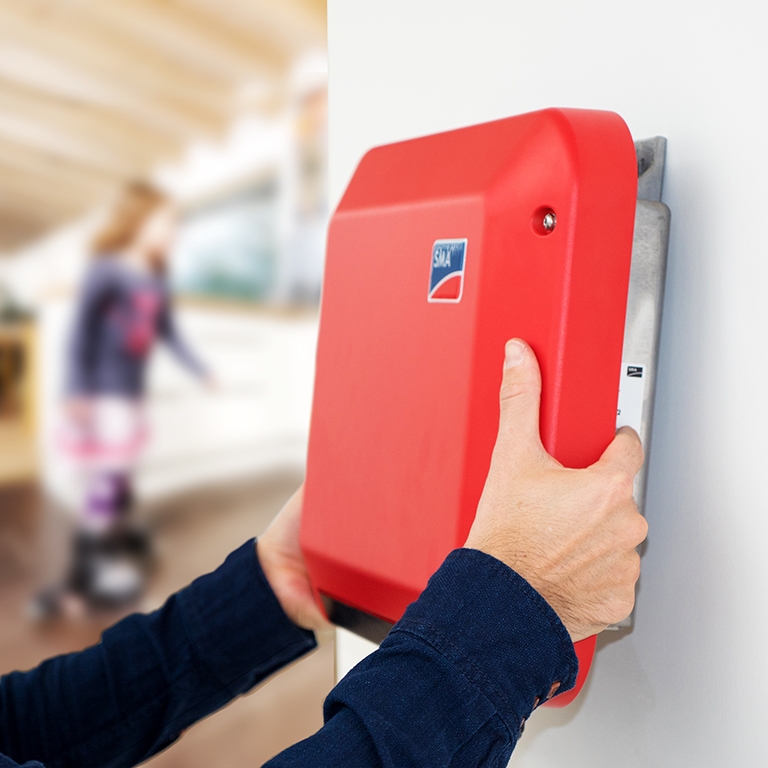

  • Easy to install as no wall mounting brackets are required.

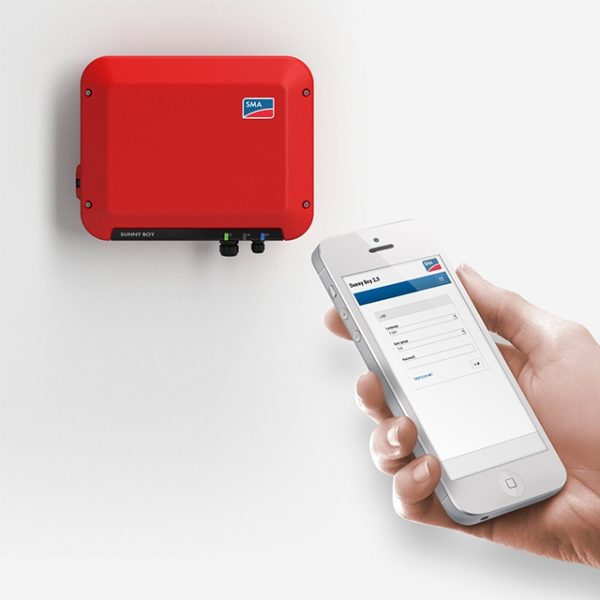

  • Innovative communication methods with the integrated web server
    and a convenient web UI. Allows system monitoring to be done on a smart
    mobile device.
  • Can be integrated with the Sunny Portal and Sunny Place.
  • Able to establish zero export systems with just the SMA Energy Meter.

Specifications

Maximum Efficiency 97%
Maximum AC Output Power 1600 W
MPP Voltage Range 160-500 V
Maximum Input DC Voltage 600 V
Connection Phase 1
Maximum DC Input Current Per Tracker 10 A
Dimension (LxWxD) 460mm x 357mm x 122mm
Weight 9.2 kg

Warranty: 5 years

> Product Data Sheet

> Installation Video – SMA

* Free shipping to Brisbane, Sydney, Melbourne, Perth Metro areas, outside Metro areas shipping costs depend on your location, starting at $15.

No DIY Electrical Work

Additional information

Weight 9.2 kg
Dimensions 46 x 36 x 13 cm
