Victron SmartSolar MPPT 150/70-MC4 Solar Controller

$1,015.85

The Victron SmartSolar MPPT 150/70-MC4 Solar Controller: 150V Max Solar (VOC) input, 70 Amp MPPT solar charge controller – 12V, 24V, 36V & 48V batteries.

SKU: B0285 Category: Brand:

Description

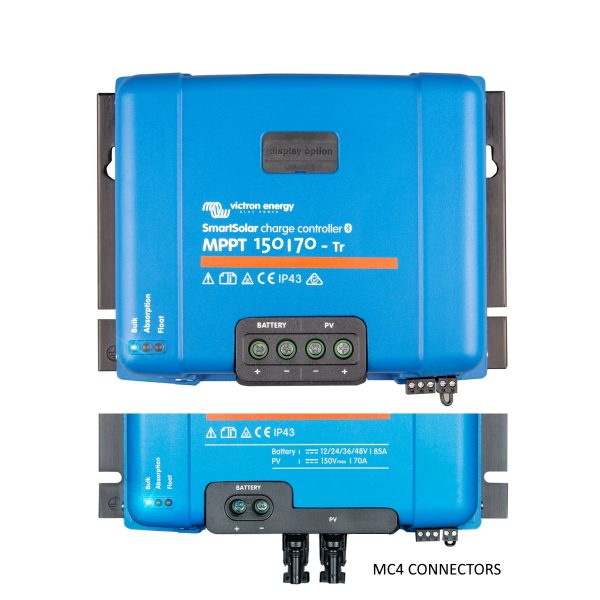

Victron SmartSolar MPPT 150/70-MC4 Solar Controller

The Victron SmartSolar MPPT 150v/70A Solar Charge Controller is a high quality, robust Maximum Power Point Tracking charge controller. The Victron 150/70MPPT is ideal for Australian conditions. Especially in the case of a clouded sky, when light intensity is changing continuously, an ultra fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. Suits 12V, 24V, 36V & 48V batteries.

Overview of Specification

  • Durable Electronics, protects from the environment
  • Voltage: 150V VOC DC
  • Power: 70A
  • 12V/24V/36V/48V Batt
  • Maximum Power Point Tracking (MPPT)
  • Installation: Wall Mounted
  • Bluetooth Smart setup integrated
  • Pluggable display

Features

  • IP Rating: IP43
  • Efficiency: 98%
  • Warranty: 5 Years
  • Programmable relay
  • Data connection port VE.direct
  • Protected against reverse polarity
  • Lithium battery compatible
  • MC4 connectors for Solar Panels

Brochure/Manufacturer’s Website

* Note – Consider Solar Panel Earthing requirements for voltages over 120V dc, in Australian electrical installations. (This product may not be DIY, for solar panel voltages over 120V DC, refer to an electrician.)

No DIY Electrical Work

Additional information

Weight 3 kg
Dimensions 25 × 20 × 9.5 cm
Brand

MPN (Part #)

Price
