Victron BlueSolar MPPT 100v/50A Solar Controller

$404.95

BlueSolar 100V Max Solar (VOC) input, 50 Amp MPPT solar charge controller for 12V and 24V batteries. Victron Energy.

SKU: B0060 Category:

Description

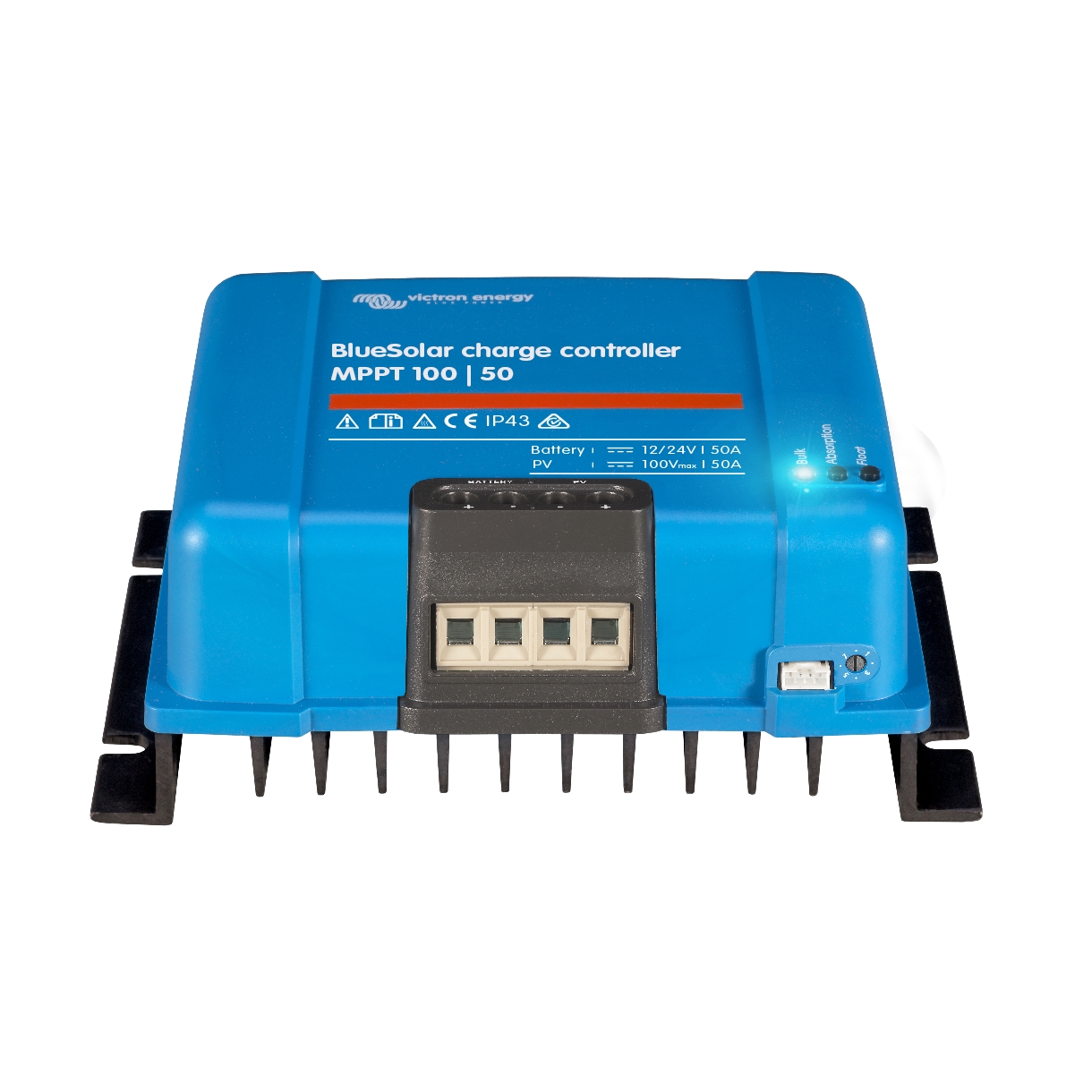

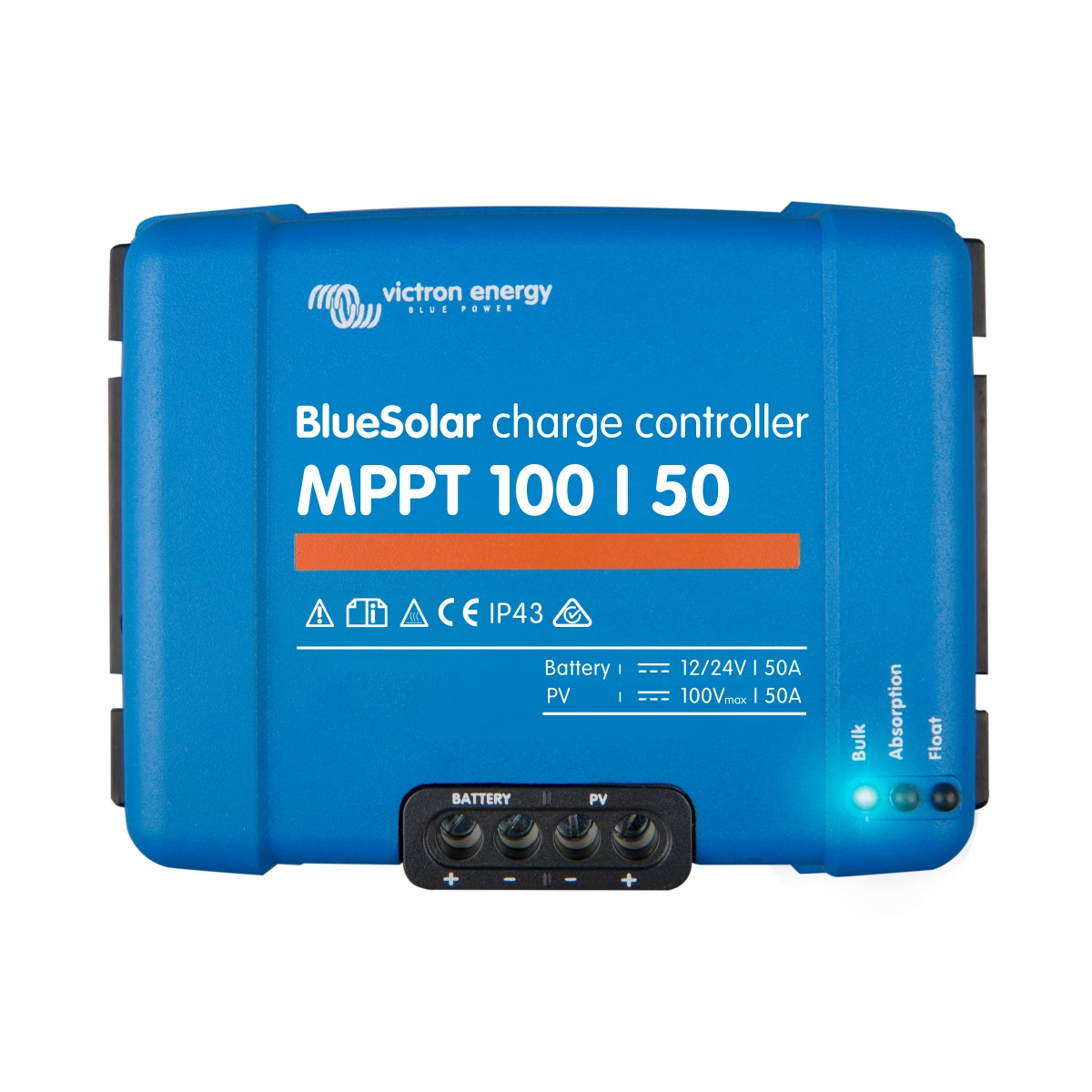

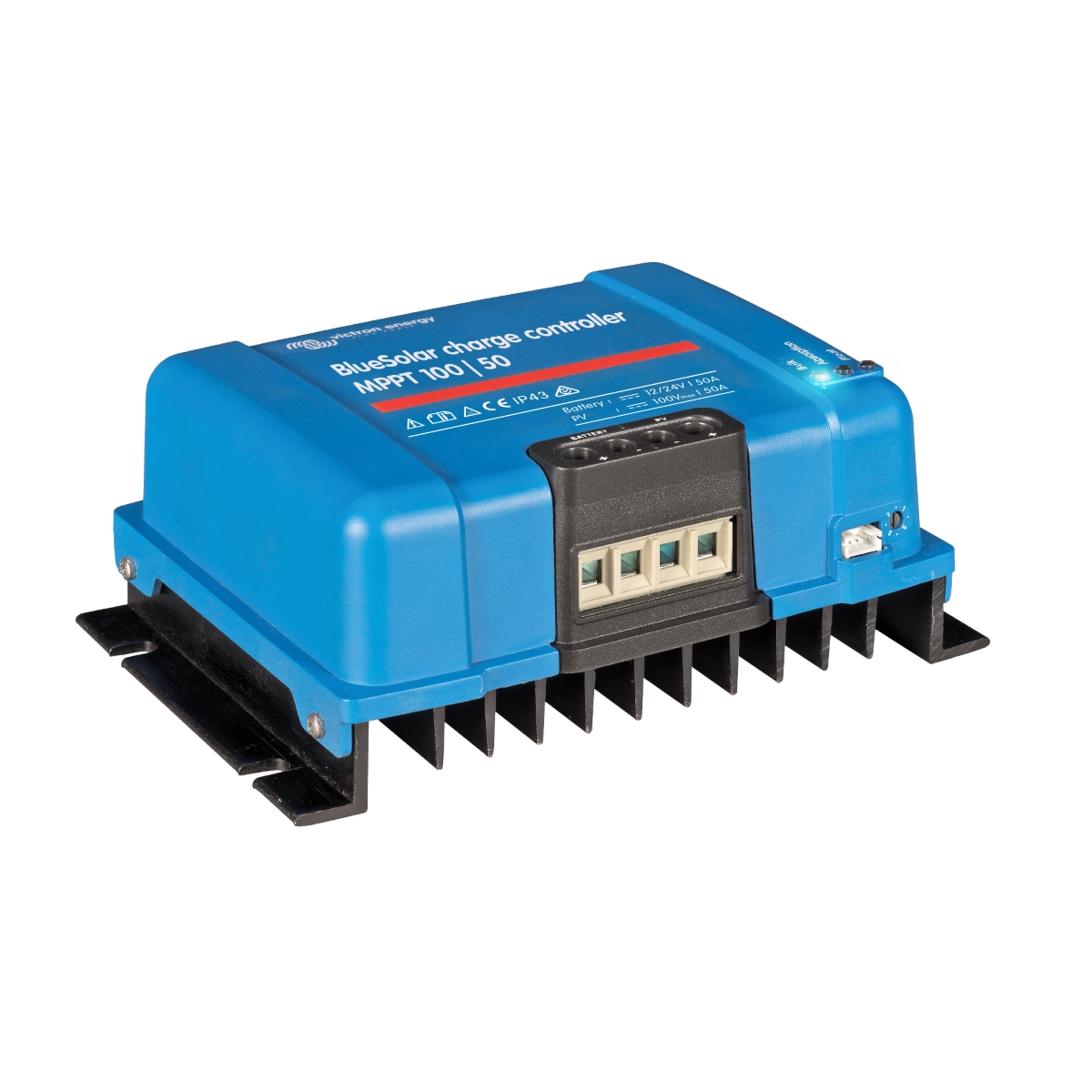

Victron BlueSolar MPPT 100v/50A Solar Charge Controller

The Victron BlueSolar MPPT 100v/50A Solar Charge Controller is a high quality, robust Maximum Power Point Tracking charge controller. The Victron 100/50 MPPT is ideal for Australian conditions. Especially in the case of a clouded sky, when light intensity is changing continuously, an ultra fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. Suits 12V or 24V batteries.

Overview of Specification

  • MPPT: Maximum Power Point Tracking
  • Fully programmable charge algorithm
  • 12V/24V Auto Select Battery voltage
  • 50 Amp Solar Charge Controller (Regulator)
  • Up to 50 Amps Solar Panel current Input (~700W/12v * 1400/24v)
  • Up to 50 Amp Load
    Low voltage load disconnect
  • Over-temperature protection and power derating when temperature is high.
  • PV short circuit and PV reverse polarity protection.
  • PV reverse current protection.
  • Internal temperature sensor
  • Weight: 1.3kg
    Dimensions: 130x186x70
  • IP43, Suitable for outdoor mounting
  • 5 Year warranty

Features

  • Durable Electronics, protects from the environment
  • Maximum Power Point Tracking (MPPT) controller. Increases charge current by up to 30% compared to a PWM controller.
  • Intelligent Battery Charge voltage settings.
  • Three stage battery charging (bulk, absorption, float).
  • Protected against over current.
  • Protected against short circuit.
  • Protected against reverse polarity connection of the solar panels and/or battery.
  • With low voltage load disconnect output.
  • Data connection port VE.direct

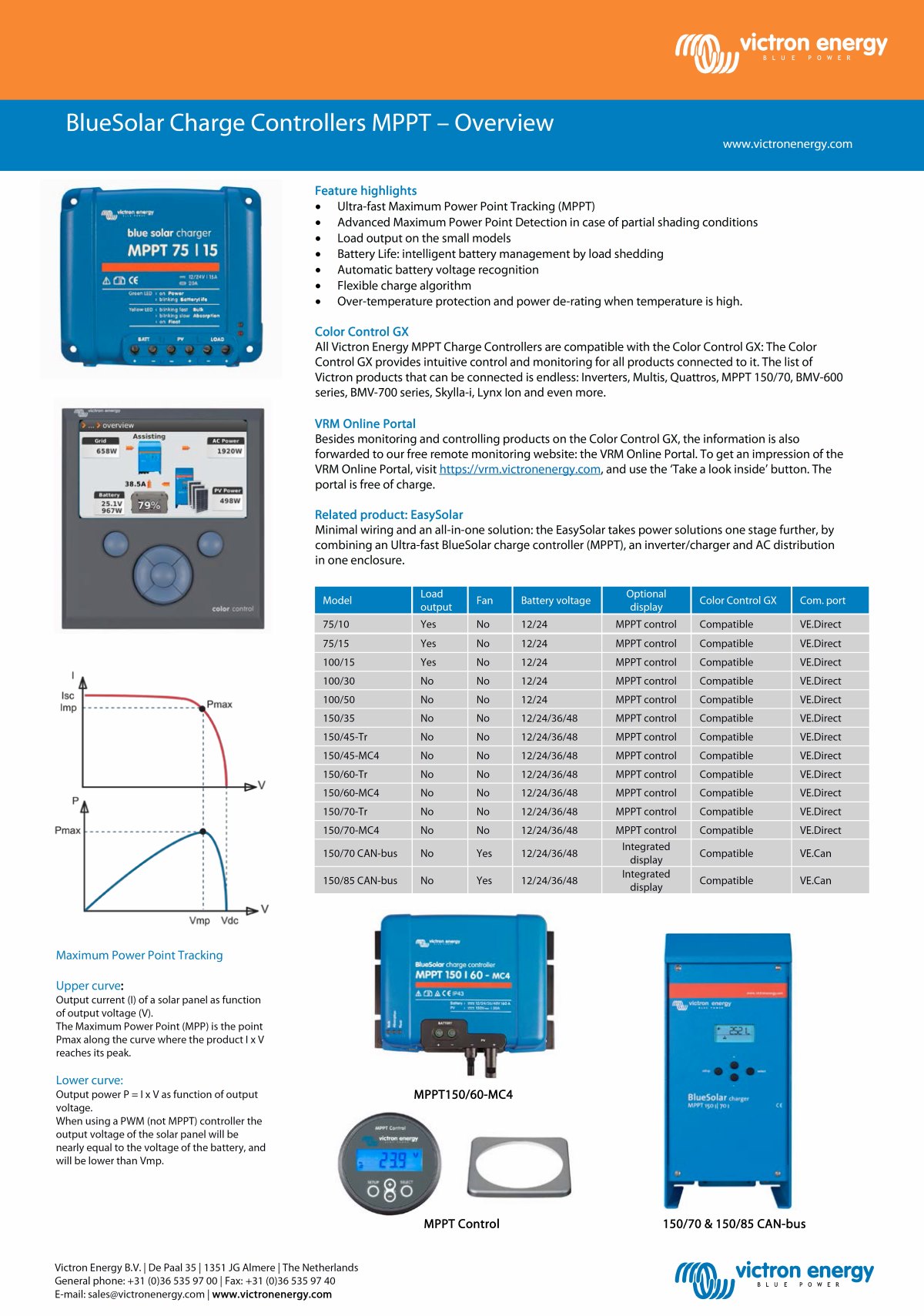

Brochure
Brochure

Additional information

Weight 1.3 kg
Dimensions 19 x 13.5 x 7 cm
Brand

MPN (Part #)

Price
