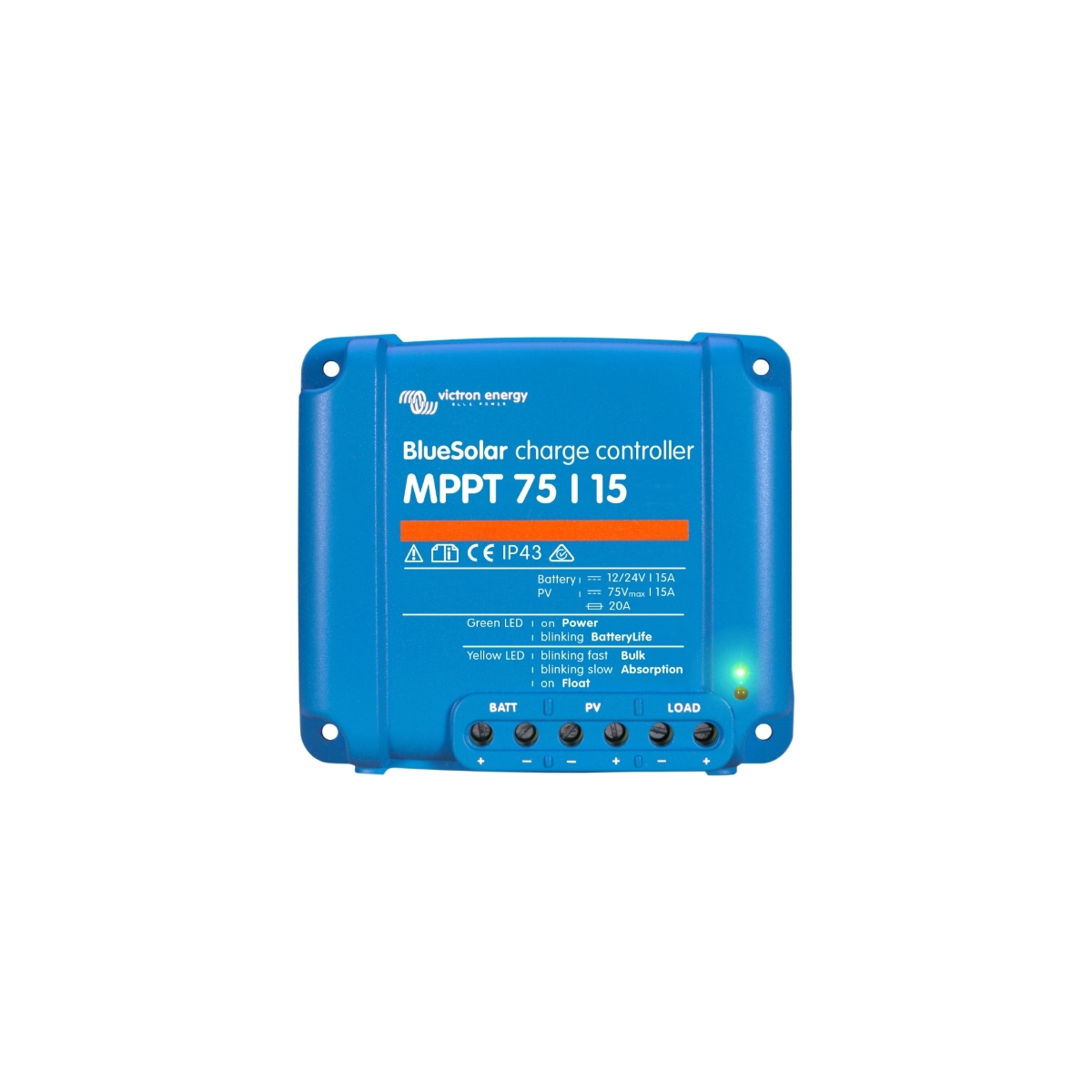

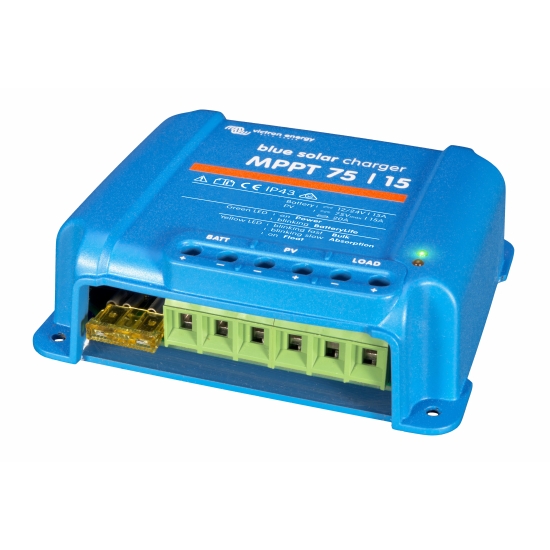

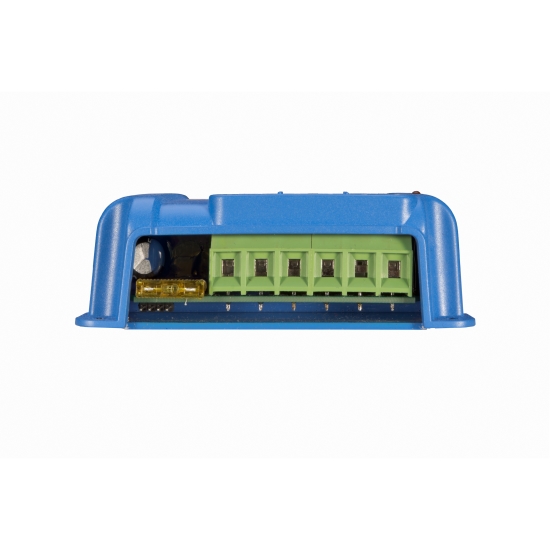

Victron BlueSolar MPPT 75v/15A Solar Controller

$137.95

BlueSolar 75V Max Solar (VOC) input, is a high quality 15 Amp MPPT solar charge controller for 12V and 24V batteries. With 5 Year Victron Energy Warranty.

SKU: B0101 Category:

Description

Victron 75/15 MPPT Solar Charge Controller

The Victron 75/15 MPPT is a Maximum Power Point Tracking (MPPT) Solar Charge controller, ideal for Australian conditions. Especially in the case of a clouded sky, when light intensity is changing continuously, an ultra fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Overview

MPPT: Maximum Power Point Tracking
12V/24V Auto Select
15 Amp Solar Charge Controller (Regulator)
Up to 15 Amps Solar Panel current Input (~200W/12v)
Up to 15 Amp Load
Low voltage load disconnect
Weight: 0.5kg
Dimensions: 100x113x40
IP65, Suitable for outdoor mounting

Features:

  • Resin Encapsulated Electronics, protects from the environment
  • Maximum Power Point Tracking (MPPT) controller. Increases charge current by up to 30% compared to a PWM controller.
  • Intelligent Battery Charge voltage settings.
  • Three stage battery charging (bulk, absorption, float).
  • Protected against over current.
  • Protected against short circuit.
  • Protected against reverse polarity connection of the solar panels and/or battery.
  • With low voltage load disconnect output.
  • Data connection port

Product Data Sheet

Additional information

Weight 0.5 kg
Dimensions 11.3 × 10 × 4 cm
Brand

MPN (Part #)

Price
